PARTS OF SUNTRACKER



GPS ST® Controllergpscontrolle

The GPS ST ® is the brain of the system Suntracker. Using the operation of energy from a small solar panel, determines the position of the system, and rotates the mirror of Suntracker during movement of the sun directing thereby sunlight inside buildings throughout the day.





tholos

Dome

The Dome of Suntracker fit designed for maximum absorption across the spectrum of solar radiation and

resistance to falling objects 544.32 kg from a height 183 cm. Providing 100% protection from UV radiation,

is the guard Suntracker.

katoptro







Reflector

Rotating within the Dome, the mirror of Suntracker throughout the day collects and directs the sunlight through the upper and lower prism lenses light diffusion. The high reflectance mirror system Suntracker absorb the full range of solar radiation-even early in the morning, until shortly before sunset and all seasons.

systima

                                     System of natural Light

The Suntracker system is designed to disperse the daylight inside the building with multiplied intensity, without transferring the heat of the solar radiation.

This is because the thermal barriers prevent heat gain associated with typical skylights.

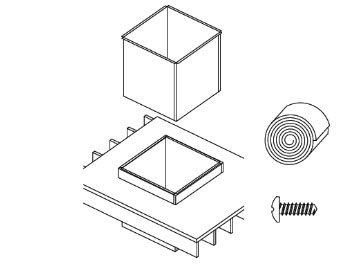

Skylight4

The system Lightwell Suntracker convey the natural light that is reflected in the mirror into the interior of the building. The natural light that passes through the excellent reflective skylight,consisting of white aluminum sheets, transmits abundant natural light inside by a diffusion lens at the bottom of the illuminating throughout the day.

The Lightwell system Suntracker is variable length and can be customized to meet every need of design and construction.





5

Light diffusing lenses

  • Upper prismatic light diffusing lenses: acrylic or polycarbonate lenses air tightly placed in the plant and at the top of a skylight within the frame dome.
  • Lower prismatic light diffusing lenses: acrylic or polycarbonate lenses air tightly placed in the plant and at the bottom of the skylight.

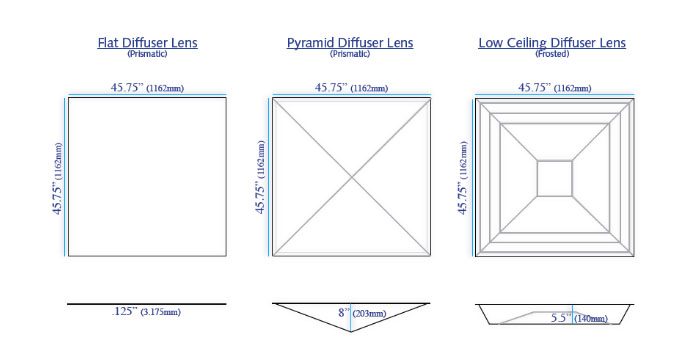

Flat lower light diffusing lenses

The Flat Lower Diffusing lenses of the Suntracker system can be adjusted to any kind of ceiling and can contribute to the uniform diaspora of daylight inside any building. These lenses may be acrylic or polycarbonate.

Pyramid shape Lower light diffusing lenses

The pyramid-shape Lower light Diffusing lenses transmit daylight inside a building in a uniform way, well distributed on all directions. The pyramid shape of the Lower light diffusing lens allows further diaspora of the natural light and the maximization of the internal level of lighting. Such lenses may be acrylic or polycarbonate.

Lower Light Diffusing lenses for low ceilings

Lower light diffusing lenses for low ceilings is the adequate choice for areas with a height of 4 meters or less. These light diffusing lenses distribute more natural daylight compared to the flat and the pyramid-shaped ones, and, as a result, they are an ideal solution for small applications, such as offices and teaching rooms. Furthermore the Lower Light Diffusing Lenses for low ceilings all the light to be channeled to greater depth, even to places such as corners and edges of the interior spaces.
